支付业务分析

1. 用户请求支付系统
2. 支付系统调用第三方支付平台API进行发起支付流程
3. 用户通过第三方支付平台支付成功后，第三方支付平台回调通知支付系统
4. 支付系统调用订单服务修改订单状态
5. 支付系统调用积分服务添加积分
6. 支付系统调用日志服务记录日志

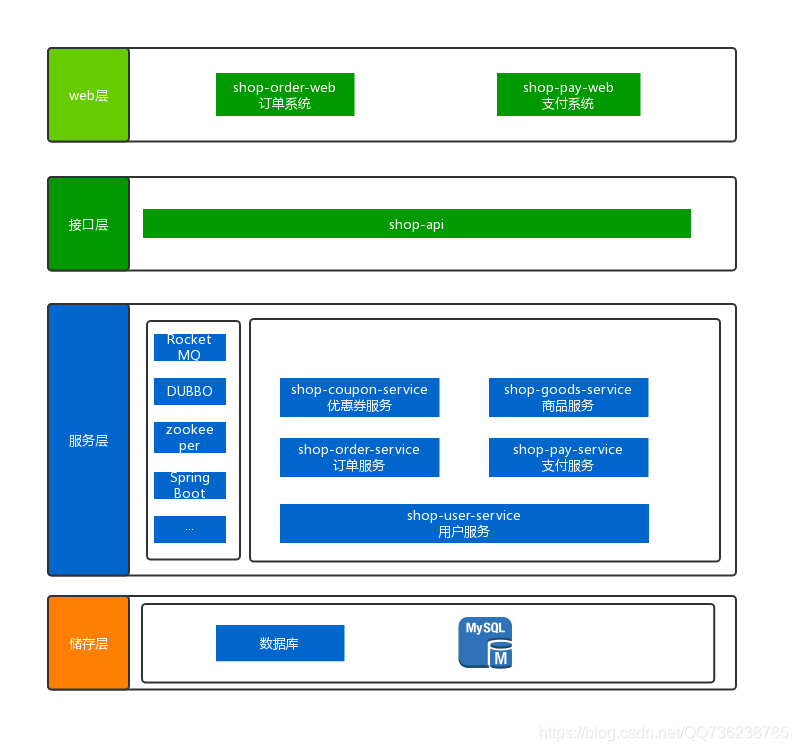

技术选型

• SpringBoot
• Dubbo(RPC)
• Zookeeper(管理和同步分布式应用中的文件)
• RocketMQ(异步解耦,分布式事务的数据一致性,消息的顺序收发)
• Redis
• Mysql

5. 支付业务

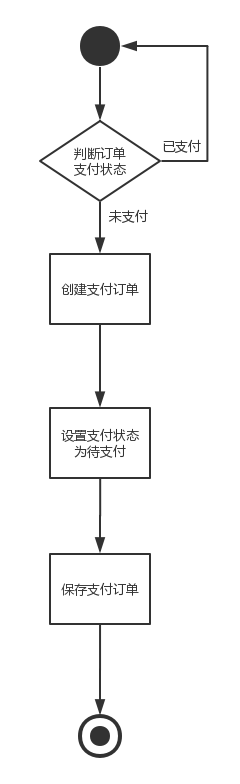

5.1 创建支付订单

public Result createPayment(TradePay tradePay) {
    //查询订单支付状态
    try {
        TradePayExample payExample = new TradePayExample();
        TradePayExample.Criteria criteria = payExample.createCriteria();
        criteria.andOrderIdEqualTo(tradePay.getOrderId());
        criteria.andIsPaidEqualTo(ShopCode.SHOP_ORDER_PAY_STATUS_IS_PAY.getCode());
        int count = tradePayMapper.countByExample(payExample);
        if (count > 0) {
            CastException.cast(ShopCode.SHOP_ORDER_PAY_STATUS_IS_PAY);
        }

        long payId = idWorker.nextId();
        tradePay.setPayId(payId);
        tradePay.setIsPaid(ShopCode.SHOP_ORDER_PAY_STATUS_NO_PAY.getCode());
        tradePayMapper.insert(tradePay);
        log.info("创建支付订单成功:" + payId);
    } catch (Exception e) {
        return new Result(ShopCode.SHOP_FAIL.getSuccess(), ShopCode.SHOP_FAIL.getMessage());
    }
    return new Result(ShopCode.SHOP_SUCCESS.getSuccess(), ShopCode.SHOP_SUCCESS.getMessage());
}

5.2 支付回调

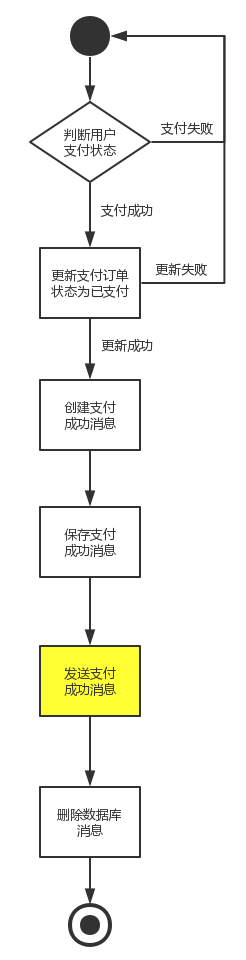

5.2.1 流程分析

5.2.2 代码实现

public Result callbackPayment(TradePay tradePay) {

    if (tradePay.getIsPaid().equals(ShopCode.SHOP_ORDER_PAY_STATUS_IS_PAY.getCode())) {
        tradePay = tradePayMapper.selectByPrimaryKey(tradePay.getPayId());
        if (tradePay == null) {
            CastException.cast(ShopCode.SHOP_PAYMENT_NOT_FOUND);
        }
        tradePay.setIsPaid(ShopCode.SHOP_ORDER_PAY_STATUS_IS_PAY.getCode());
        int i = tradePayMapper.updateByPrimaryKeySelective(tradePay);
        //更新成功代表支付成功
        if (i == 1) {
            TradeMqProducerTemp mqProducerTemp = new TradeMqProducerTemp();
            mqProducerTemp.setId(String.valueOf(idWorker.nextId()));
            mqProducerTemp.setGroupName("payProducerGroup");
            mqProducerTemp.setMsgKey(String.valueOf(tradePay.getPayId()));
            mqProducerTemp.setMsgTag(topic);
            mqProducerTemp.setMsgBody(JSON.toJSONString(tradePay));
            mqProducerTemp.setCreateTime(new Date());
            mqProducerTempMapper.insert(mqProducerTemp);
            TradePay finalTradePay = tradePay;
            executorService.submit(new Runnable() {
                @Override
                public void run() {
                    try {
                        SendResult sendResult = sendMessage(topic,
                                                            tag,
                                                            finalTradePay.getPayId(),
                                                            JSON.toJSONString(finalTradePay));
                        log.info(JSON.toJSONString(sendResult));
                        if (SendStatus.SEND_OK.equals(sendResult.getSendStatus())) {
                            mqProducerTempMapper.deleteByPrimaryKey(mqProducerTemp.getId());
                            System.out.println("删除消息表成功");
                        }
                    } catch (Exception e) {
                        e.printStackTrace();
                    }
                }
            });
        } else {
            CastException.cast(ShopCode.SHOP_PAYMENT_IS_PAID);
        }
    }
    return new Result(ShopCode.SHOP_SUCCESS.getSuccess(), ShopCode.SHOP_SUCCESS.getMessage());
}

线程池优化消息发送逻辑

• 创建线程池对象

@Bean
public ThreadPoolTaskExecutor getThreadPool() {

    ThreadPoolTaskExecutor executor = new ThreadPoolTaskExecutor();

    executor.setCorePoolSize(4);

    executor.setMaxPoolSize(8);

    executor.setQueueCapacity(100);

    executor.setKeepAliveSeconds(60);

    executor.setThreadNamePrefix("Pool-A");

    executor.setRejectedExecutionHandler(new ThreadPoolExecutor.CallerRunsPolicy());

    executor.initialize();

    return executor;

}

• 使用线程池

@Autowired
private ThreadPoolTaskExecutor executorService;

executorService.submit(new Runnable() {
    @Override
    public void run() {
        try {
            SendResult sendResult = sendMessage(topic, tag, finalTradePay.getPayId(), JSON.toJSONString(finalTradePay));
            log.info(JSON.toJSONString(sendResult));
            if (SendStatus.SEND_OK.equals(sendResult.getSendStatus())) {
                mqProducerTempMapper.deleteByPrimaryKey(mqProducerTemp.getId());
                System.out.println("删除消息表成功");
            }
        } catch (Exception e) {
            e.printStackTrace();
        }
    }
});

5.2.3

处理消息

支付成功后，支付服务payService发送MQ消息，订单服务、用户服务、日志服务需要订阅消息进行处理

1. 订单服务修改订单状态为已支付
2. 日志服务记录支付日志
3. 用户服务负责给用户增加积分

以下用订单服务为例说明消息的处理情况

1）配置RocketMQ属性值

mq.pay.topic=payTopic
mq.pay.consumer.group.name=pay_payTopic_group

2）消费消息

• 在订单服务中，配置公共的消息处理类

public class BaseConsumer {

    public TradeOrder handleMessage(IOrderService
                                    orderService,
                                    MessageExt messageExt,Integer code) throws Exception {
        //解析消息内容
        String body = new String(messageExt.getBody(), "UTF-8");
        String msgId = messageExt.getMsgId();
        String tags = messageExt.getTags();
        String keys = messageExt.getKeys();
        OrderMQ orderMq = JSON.parseObject(body, OrderMQ.class);

        //查询
        TradeOrder order = orderService.findOne(orderMq.getOrderId());

        if(ShopCode.SHOP_ORDER_MESSAGE_STATUS_CANCEL.getCode().equals(code)){
            order.setOrderStatus(ShopCode.SHOP_ORDER_CANCEL.getCode());
        }

        if(ShopCode.SHOP_ORDER_MESSAGE_STATUS_ISPAID.getCode().equals(code)){
            order.setPayStatus(ShopCode.SHOP_ORDER_PAY_STATUS_IS_PAY.getCode());
        }
        orderService.changeOrderStatus(order);
        return order;
    }

}

• 接受订单支付成功消息

@Slf4j
@Component
@RocketMQMessageListener(topic = "${mq.pay.topic}",
                         consumerGroup = "${mq.pay.consumer.group.name}")
public class PayConsumer extends BaseConsumer implements RocketMQListener<MessageExt> {

    @Autowired
    private IOrderService orderService;

    @Override
    public void onMessage(MessageExt messageExt) {
        try {
            log.info("CancelOrderProcessor receive message:"+messageExt);
            TradeOrder order = handleMessage(orderService,
                                             messageExt,
                                             ShopCode.SHOP_ORDER_MESSAGE_STATUS_ISPAID.getCode());
            log.info("订单:["+order.getOrderId()+"]支付成功");
        } catch (Exception e) {
            e.printStackTrace();
            log.error("订单支付失败");
        }
    }
}

参考文章

RocketMq精讲

有不对的地方，欢迎大家一起讨论。
